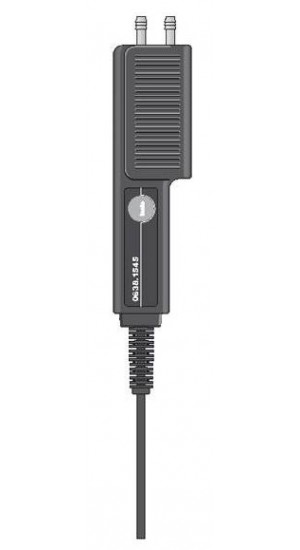

Provides an accurate measurement of differential pressure while paired with the 445 Multi-Function IAQ/HVAC/R Meter, along with flow velocities when paired with a Pitot Tube. Offers a measuring range of 0 to 100 hPa.
Provides an accurate measurement of differential pressure while paired with the 445 Multi-Function IAQ/HVAC/R Meter, along with flow velocities when paired with a Pitot Tube. Offers a measuring range of 0 to 100 hPa.
Discontinued!
This product has been discontinued and is no longer available. There are no replacement options.
We can help you find what you need:
Features
Applications
| Differential Pressure | |
| Measuring Range | 0 to 40 InH2O (0 to 100 hPa) |
| Accuracy | ±0.0 InH2O (0 to 8 InH2O) ±0.5% of mv (8 to 40 InH2O) ±0.1 hPa (1 to 20 hPa) ±0.5% of mv (20 to 100 hPa) |
| Overload | 80 InH2O (200 hPa) |
| General Specifications | |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 158°F (-20 to 70°C) |
| Cable Length | 4.9' (1.5 m) |
| Differential Pressure | |
| Measuring Range | 0 to 40 InH2O (0 to 100 hPa) |
| Accuracy | ±0.0 InH2O (0 to 8 InH2O) ±0.5% of mv (8 to 40 InH2O) ±0.1 hPa (1 to 20 hPa) ±0.5% of mv (20 to 100 hPa) |
| Overload | 80 InH2O (200 hPa) |
| General Specifications | |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 158°F (-20 to 70°C) |
| Cable Length | 4.9' (1.5 m) |
