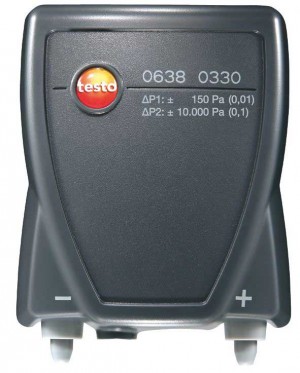

Testo 0638 0330 Fine Pressure Probe for Heating System Checks

Model: 0638 0330 | UPC: 4029547009679

Testo 0638 0330 Fine Pressure Probe for Heating System Checks-


Downloads: manual

Testo 0638 0330 Fine Pressure Probe for Heating System Checks

Model: 0638 0330

The high-precision probe is used for the measurement of differential pressure and temperature in combination with the testo 320 and testo 330. Heating checks (according to DIN EN 15378) and 4 pascal measurement can be carried out with further accessories.

The high-precision probe is used for the measurement of differential pressure and temperature in combination with the testo 320 and testo 330. Heating checks (according to DIN EN 15378) and 4 pascal measurement can be carried out with further accessories.

Sale Price $339.15 USD
Regular Price $399.00 USD
Availability 4 to 5 Weeks
Quantity

Testo 0638 0330 Offers

Features

  • Carrying out heating system checks and 4 pascal measurement with compatible flue gas analyzer and accessories
  • Simultaneous measurement of gas pressure and flue gas values
  • No zero point drift during pressure measurement (cyclic zeroing)

Testo 0638 0330 Specifications

Temperature - Type K TC Measuring range Depends on probe, max. -40 to +1200 °C
Accuracy ±0.5 °C (-40 to +100 °C) ; ±0.5 % of mv (Remaining Range) additionally ±1 digit, additionally accuracy of probe
Resolution 0.1 °C
Measuring rate max. 1 / sec
Differential Pressure Measuring range -40.0 to +40.0 InH2O / -9999.9 to +9999.9 Pa
Velocity / Volume flow Measuring range Display range: 29.50 to 591 fpm / Display range: 0.15 to 3 m/s
Operating humidity 10 to 90 %rH non-dewing
Storage temperature -20 to +50 °C
Operating temperature 5 to +45 °C
Protection class IP40

What's included with the Testo 0638 0330

  • Testo 0638 0330 Fine Pressure Probe for Heating System Checks
