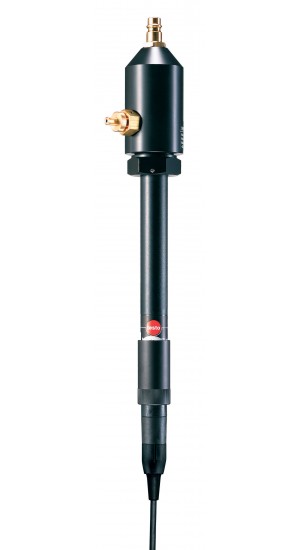

Testo 0636 9836 Precision Pressure Dewpoint Probe, -40°C TPD

Model: 0636 9836 | UPC: 4029547002687

Testo 0636 9836 Precision Pressure Dewpoint Probe, -40°C TPD-

Testo 0636 9836 Precision Pressure Dewpoint Probe, -40°C TPD

Model: 0636 9836

The ideal probe for highly accurate measurements in the remaining humidity range (e.g. in adsorption dryers to -50°C TPD). Includes a certificate with test point.

The ideal probe for highly accurate measurements in the remaining humidity range (e.g. in adsorption dryers to -50°C TPD). Includes a certificate with test point.

Sale Price $1299.65 USD
Regular Price $1529.00 USD
Availability 2 to 3 Weeks
Quantity

Testo 0636 9836 Offers

The TPD (Pressure Dew Point) is the temperature at which compressed air reaches the saturation state (100% RH). This value is an important criteria for the perfect running of the compressed air plant.

This probe is connected to a compressed air system via a standard plug-in connector (G1/4" internal thread to ISO 228-1) or via a screw-on adapter for measurements at test points. If you require other standard plug-in connectors with the G 1/4" thread, it can be screwed into the measuring chamber.

The sensor is positioned in the flow of compressed air being measured, for the duration of the measurement. The probes can be used, without a measuring chamber, in accordance with the Instruction Manual for the Testo x35 instruments. By connecting the probe to Testo x35 the user has a portable, mains independent measuring system. The large display enables the display of the relative humidity or the dew point with the temperature.

Testo 0636 9836 Specifications

Measuring Range 0 to 100 %RH, -60 to 50°C TPD
Pressure Dew Point TPD -60 to 50°C TPD
Pressure Range Overpressure to 15 bar
Temperature Accuracy ±0.4°C
Resolution 0.1% RH / 0.1°C
Temperature Range Probe: -20 to 50°C
Instrument: 0 to 40°C
Control Point 11.3 to 75.3% RH

What's included with the Testo 0636 9836

  • Testo 0636 9836 Precision Pressure Dewpoint Probe, -40°C TPD
  • Customer Reviews for the Testo 0636 9836

    Ask a question about Testo 0636 9836 Precision Pressure Dewpoint Probe, -40°C TPD

    Testo 0636 9836 Offers

    The TPD (Pressure Dew Point) is the temperature at which compressed air reaches the saturation state (100% RH). This value is an important criteria for the perfect running of the compressed air plant.

    This probe is connected to a compressed air system via a standard plug-in connector (G1/4" internal thread to ISO 228-1) or via a screw-on adapter for measurements at test points. If you require other standard plug-in connectors with the G 1/4" thread, it can be screwed into the measuring chamber.

    The sensor is positioned in the flow of compressed air being measured, for the duration of the measurement. The probes can be used, without a measuring chamber, in accordance with the Instruction Manual for the Testo x35 instruments. By connecting the probe to Testo x35 the user has a portable, mains independent measuring system. The large display enables the display of the relative humidity or the dew point with the temperature.

    Testo 0636 9836 Specifications

    Measuring Range 0 to 100 %RH, -60 to 50°C TPD
    Pressure Dew Point TPD -60 to 50°C TPD
    Pressure Range Overpressure to 15 bar
    Temperature Accuracy ±0.4°C
    Resolution 0.1% RH / 0.1°C
    Temperature Range Probe: -20 to 50°C
    Instrument: 0 to 40°C
    Control Point 11.3 to 75.3% RH

    What's included with the Testo 0636 9836

  • Testo 0636 9836 Precision Pressure Dewpoint Probe, -40°C TPD
