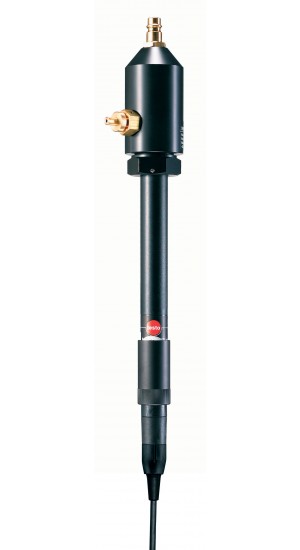

Testo 0636 9835 Pressure Dewpoint Probe with Fixed Cable, 300mm

Model: 0636 9835 | UPC: 4029547002670

Testo 0636 9835 Pressure Dewpoint Probe with Fixed Cable, 300mm-

Testo 0636 9835 Pressure Dewpoint Probe with Fixed Cable, 300mm

Model: 0636 9835

For measurements in compressed air systems (e.g. refrigeration dryers in the range from 0 to 2°C TPD).

For measurements in compressed air systems (e.g. refrigeration dryers in the range from 0 to 2°C TPD).

Sale Price $973.25 USD
Regular Price $1145.00 USD
Availability 2 to 3 Weeks
Quantity

Testo 0636 9835 Offers

The TPD (Pressure Dew Point) is the temperature at which compressed air reaches the saturation state (100% RH). This value is an important criteria for the perfect running of the compressed air plant.

This probe is connected to a compressed air system via a standard plug-in connector (G1/4" internal thread to ISO 228-1) or via a screw-on adapter for measurements at test points. If you require other standard plug-in connectors with the G 1/4" thread, it can be screwed into the measuring chamber.

The sensor is positioned in the flow of compressed air being measured, for the duration of the measurement. The probes can be used, without a measuring chamber, in accordance with the Instruction Manual for the Testo x35 instruments. By connecting the probe to Testo x35 the user has a portable, mains independent measuring system. The large display enables the display of the relative humidity or the dew point with the temperature.

Testo 0636 9835 Specifications

Measuring Range 0 to 100 %RH, -30 to 50°C TPD
Pressure Dew Point TPD -60 to 50°C TPD
Pressure Range Overpressure to 15 bar
Temperature Accuracy ±0.4°C
Resolution 0.1% RH / 0.1°C
Temperature Range Probe: -20 to 50°C
Instrument: 0 to 40°C
Control Point 11.3 to 75.3% RH

What's included with the Testo 0636 9835

  • Testo 0636 9835 Pressure Dewpoint Probe with Fixed Cable, 300mm
  • Customer Reviews for the Testo 0636 9835

    Ask a question about Testo 0636 9835 Pressure Dewpoint Probe with Fixed Cable, 300mm

    Testo 0636 9835 Offers

    The TPD (Pressure Dew Point) is the temperature at which compressed air reaches the saturation state (100% RH). This value is an important criteria for the perfect running of the compressed air plant.

    This probe is connected to a compressed air system via a standard plug-in connector (G1/4" internal thread to ISO 228-1) or via a screw-on adapter for measurements at test points. If you require other standard plug-in connectors with the G 1/4" thread, it can be screwed into the measuring chamber.

    The sensor is positioned in the flow of compressed air being measured, for the duration of the measurement. The probes can be used, without a measuring chamber, in accordance with the Instruction Manual for the Testo x35 instruments. By connecting the probe to Testo x35 the user has a portable, mains independent measuring system. The large display enables the display of the relative humidity or the dew point with the temperature.

    Testo 0636 9835 Specifications

    Measuring Range 0 to 100 %RH, -30 to 50°C TPD
    Pressure Dew Point TPD -60 to 50°C TPD
    Pressure Range Overpressure to 15 bar
    Temperature Accuracy ±0.4°C
    Resolution 0.1% RH / 0.1°C
    Temperature Range Probe: -20 to 50°C
    Instrument: 0 to 40°C
    Control Point 11.3 to 75.3% RH

    What's included with the Testo 0636 9835

  • Testo 0636 9835 Pressure Dewpoint Probe with Fixed Cable, 300mm
  • Ask a question about Testo 0636 9835 Pressure Dewpoint Probe with Fixed Cable, 300mm
