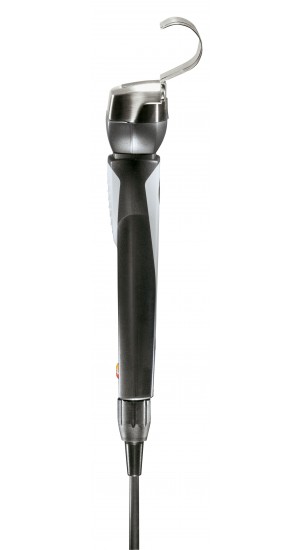

Testo 0636 6160 Scatter Field Probe for the Testo 635-1 and 635-2

Model: 0636 6160 | UPC: 4029547009020

Testo 0636 6160 Scatter Field Probe for the Testo 635-1 and 635-2-


Downloads: datasheet

Testo 0636 6160 Scatter Field Probe for the Testo 635-1 and 635-2

Model: 0636 6160

For fast and non-destructive evaluation of material moisture courses in woods and building materials.

For fast and non-destructive evaluation of material moisture courses in woods and building materials.

Sale Price $390.15 USD
Regular Price $459.00 USD
Availability 3 to 4 Weeks
Quantity

Testo 0636 6160 Scatter Field Probe Offers

The non-destructive stray field measurement uses the ability of water molecules to dampen and thus change electromagnetic fields. The electric field penetrates the material via the contact plates and creates a measuring field with a depth of approximately 5 cm. The probe is not calibratable.

Testo 0636 6160 Specifications

Parameters Water content in weight percent of dry mass
Measuring Ranges Wood: < 50%
Building Materials: < 20%
Resolution 0.1%
Probe Contact Plate Integrated
Measuring Rate 0.5 seconds
Operating Temperature and Humidity 5 to 40°C (41 to 104°F) / 10 to 80% RH
Storage Temperature -20 to 70°C (-4 to 158°F)
Protection Class IP30
EC Directive 2004/108/EC
Warranty 2 years (excepting wearing parts)
Click here for complete specifications on the Testo 0636 6160

What's included with the Testo 0636 6160

  • Testo 0636 6160 Scatter Field Probe for the Testo 635-1 and 635-2
  • Customer Reviews for the Testo 0636 6160

    Ask a question about Testo 0636 6160 Scatter Field Probe for the Testo 635-1 and 635-2

    Testo 0636 6160 Scatter Field Probe Offers

    The non-destructive stray field measurement uses the ability of water molecules to dampen and thus change electromagnetic fields. The electric field penetrates the material via the contact plates and creates a measuring field with a depth of approximately 5 cm. The probe is not calibratable.

    Testo 0636 6160 Specifications

    Parameters Water content in weight percent of dry mass
    Measuring Ranges Wood: < 50%
    Building Materials: < 20%
    Resolution 0.1%
    Probe Contact Plate Integrated
    Measuring Rate 0.5 seconds
    Operating Temperature and Humidity 5 to 40°C (41 to 104°F) / 10 to 80% RH
    Storage Temperature -20 to 70°C (-4 to 158°F)
    Protection Class IP30
    EC Directive 2004/108/EC
    Warranty 2 years (excepting wearing parts)
    Click here for complete specifications on the Testo 0636 6160

    What's included with the Testo 0636 6160

  • Testo 0636 6160 Scatter Field Probe for the Testo 635-1 and 635-2
  • Ask a question about Testo 0636 6160 Scatter Field Probe for the Testo 635-1 and 635-2

    Customer Reviews for the Testo 0636 6160
