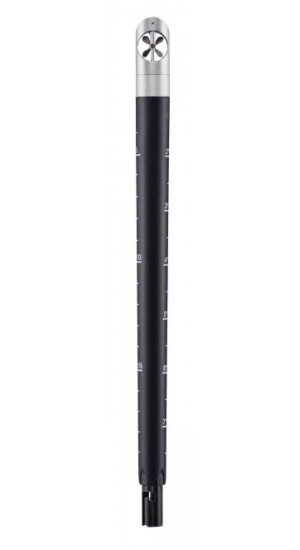

Features intuitive technology that provides a parallel determination of flow velocity, volume flow, and humidity. Ensure accurate measurement results from 0.6 to 50 m/s.
Features intuitive technology that provides a parallel determination of flow velocity, volume flow, and humidity. Ensure accurate measurement results from 0.6 to 50 m/s.
Features
Applications
Temperature - NTC | |
Measuring Range | -14 to 158°F (-10 to 70°C) |
Accuracy | ±3.2°F (±1.8°C) |
Resolution | 0.1°F (0.1°C) |
Velocity/Volume Flow | |
Measuring Range | 0.6118.1 to 9843 fpm (0.6 to 50 m/s) |
Accuracy | ±(39.4 fpm + 1 % of mv) (118.1 to 7874 fpm) ±(39.4 fpm + 2 % of mv) (7893.7 to 9843 fpm) ±(0.2 m/s + 1 % of mv) (0.6 to 40 m/s) ±(0.2 m/s + 2 % of mv) (40.1 to 50 m/s) |
Resolution | 19.7 fpm (0.1 m/s) |
General Specifications | |
Operating Temperature | 14 to 158°F (-10 to 70°C) |
Storage Temperature | 14 to 158°F (-10 to 70°C) |
Probe Shaft Tip Diameter | 0.63" (16 mm) |
Dimensions | 9.6 x 0.6 x 0.6" (245 x 16 x 16 mm) |
Weight | 2.1 oz (60 g) |
Temperature - NTC | |
Measuring Range | -14 to 158°F (-10 to 70°C) |
Accuracy | ±3.2°F (±1.8°C) |
Resolution | 0.1°F (0.1°C) |
Velocity/Volume Flow | |
Measuring Range | 0.6118.1 to 9843 fpm (0.6 to 50 m/s) |
Accuracy | ±(39.4 fpm + 1 % of mv) (118.1 to 7874 fpm) ±(39.4 fpm + 2 % of mv) (7893.7 to 9843 fpm) ±(0.2 m/s + 1 % of mv) (0.6 to 40 m/s) ±(0.2 m/s + 2 % of mv) (40.1 to 50 m/s) |
Resolution | 19.7 fpm (0.1 m/s) |
General Specifications | |
Operating Temperature | 14 to 158°F (-10 to 70°C) |
Storage Temperature | 14 to 158°F (-10 to 70°C) |
Probe Shaft Tip Diameter | 0.63" (16 mm) |
Dimensions | 9.6 x 0.6 x 0.6" (245 x 16 x 16 mm) |
Weight | 2.1 oz (60 g) |
