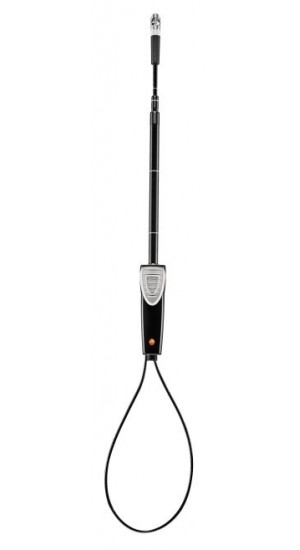

Testo 0635 9552 High-Temperature Vane Anemometer Probe with Telescope, ∅ 0.63”’

Model: 0635 9552

Testo 0635 9552 High-Temperature Vane Anemometer Probe with Telescope, ∅ 0.63”’-

Testo 0635 9552 High-Temperature Vane Anemometer Probe with Telescope, ∅ 0.63”’

Model: 0635 9552

With a wide temperature range of up to 284°F (140°C), this device can be used in hot process air, as well as industrial ventilation systems. Features a stable and non-rotatable telescope, making it easier to read the immersion depth.

With a wide temperature range of up to 284°F (140°C), this device can be used in hot process air, as well as industrial ventilation systems. Features a stable and non-rotatable telescope, making it easier to read the immersion depth.

Sale Price $1029.35 USD
Regular Price $1211.00 USD
Availability 2 to 3 Weeks
Quantity

Testo 0635 9552 Offers

Features

  • Measuring range: Air velocity from 0.6 to 50 m/s; temperature from -22 to 284°F (-30 to 140°C) (probe head)
  • Telescope: The probe is equipped with a stable, non-rotatable telescope. When extended, the maximum length of the telescope is 38" (960 mm). Thanks to the scaling on the telescope, the immersion depth can be read off easily
  • Measurement button: located on the handle of the vane anemometer probe. Use this measurement button to directly trigger the storage of air velocity and volumetric flow readings. These readings are then immediately stored and displayed in the 480 climate measuring instrument. The benefits offered by the measurement button are two-fold: you will find the probe easier to handle during the measurement and you also get accurate measurement data. This is because the 480 climate measuring instrument can be attached to the ventilation duct during the measurement. You just need to make sure that the vane anemometer probe is ideally positioned in the duct and - courtesy of the practical measurement button - store the respective maximum air velocity or volumetric flow value right away
  • Digital principle: Since the probe is digital, this eliminates the measurement uncertainty of the 480 climate measuring instrument. This means you can benefit from accurate measurement results
  • Probe head with a diameter of 16 mm
  • Intelligent calibration concept:
    • Calibration reminder: the probe notifies the 480 climate measuring instrument as soon as the next calibration is due. Our recommendation: calibration 1 x per year
    • Probe calibration: Subsequently you can have the probe calibrated. There is no need to send in the 480 climate measuring instrument either. This means that the measuring instrument can be used with the greatest possible flexibility
    • Enter the calibration data: You can now enter the calibration deviations from the calibration certificate using the EasyClimate software (included with the 480). These are therefore stored in the probe permanently
    • Zero-error display: The probe takes calibration deviations into account automatically (i.e. the probe's reading is adjusted by the measurement deviation from the certificate), thereby generating a zero-error display in the 480 measuring instrument. Your system, which consists of measuring instrument and probe, delivers measurement results that are reliable and reproducible

Applications

  • Ventilation

Testo 0635 9552 Specifications

Temperature - NTC
Measuring Range -22 to 284°F (-30 to 140°C)
Accuracy ±(2.5°C + 8% of mv)
Resolution 0.1°F (0.1°C)
Velocity/Volume Flow
Measuring Range 0.6 to 50 m/s
Accuracy ±(0.2 m/s + 1 % of mv) (0.6 to 40 m/s)
±(0.2 m/s + 2 % of mv) (40.1 to 50 m/s)
Resolution 0.1 m/s
General Specifications
Dimensions 37.79 x 0.63 x 3.94" (960 x 16 x 100 mm)

What's included with the Testo 0635 9552

  • High-Temperature Vane Anemometer Probe
  • Clip-On Protective Cap

Customer Reviews for the Testo 0635 9552

Ask a question about Testo 0635 9552 High-Temperature Vane Anemometer Probe with Telescope, ∅ 0.63”’

Testo 0635 9552 Offers

Features

  • Measuring range: Air velocity from 0.6 to 50 m/s; temperature from -22 to 284°F (-30 to 140°C) (probe head)
  • Telescope: The probe is equipped with a stable, non-rotatable telescope. When extended, the maximum length of the telescope is 38" (960 mm). Thanks to the scaling on the telescope, the immersion depth can be read off easily
  • Measurement button: located on the handle of the vane anemometer probe. Use this measurement button to directly trigger the storage of air velocity and volumetric flow readings. These readings are then immediately stored and displayed in the 480 climate measuring instrument. The benefits offered by the measurement button are two-fold: you will find the probe easier to handle during the measurement and you also get accurate measurement data. This is because the 480 climate measuring instrument can be attached to the ventilation duct during the measurement. You just need to make sure that the vane anemometer probe is ideally positioned in the duct and - courtesy of the practical measurement button - store the respective maximum air velocity or volumetric flow value right away
  • Digital principle: Since the probe is digital, this eliminates the measurement uncertainty of the 480 climate measuring instrument. This means you can benefit from accurate measurement results
  • Probe head with a diameter of 16 mm
  • Intelligent calibration concept:
    • Calibration reminder: the probe notifies the 480 climate measuring instrument as soon as the next calibration is due. Our recommendation: calibration 1 x per year
    • Probe calibration: Subsequently you can have the probe calibrated. There is no need to send in the 480 climate measuring instrument either. This means that the measuring instrument can be used with the greatest possible flexibility
    • Enter the calibration data: You can now enter the calibration deviations from the calibration certificate using the EasyClimate software (included with the 480). These are therefore stored in the probe permanently
    • Zero-error display: The probe takes calibration deviations into account automatically (i.e. the probe's reading is adjusted by the measurement deviation from the certificate), thereby generating a zero-error display in the 480 measuring instrument. Your system, which consists of measuring instrument and probe, delivers measurement results that are reliable and reproducible

Applications

  • Ventilation

Testo 0635 9552 Specifications

Temperature - NTC
Measuring Range -22 to 284°F (-30 to 140°C)
Accuracy ±(2.5°C + 8% of mv)
Resolution 0.1°F (0.1°C)
Velocity/Volume Flow
Measuring Range 0.6 to 50 m/s
Accuracy ±(0.2 m/s + 1 % of mv) (0.6 to 40 m/s)
±(0.2 m/s + 2 % of mv) (40.1 to 50 m/s)
Resolution 0.1 m/s
General Specifications
Dimensions 37.79 x 0.63 x 3.94" (960 x 16 x 100 mm)

What's included with the Testo 0635 9552

  • High-Temperature Vane Anemometer Probe
  • Clip-On Protective Cap
