The vane/temperature probe (in conjunction with the appropriate measuring instrument) is ideal for determining flow velocity and volume flow in ventilation ducts. It can also measure temperatures of up to +140 °C at the same time. Please note you will need either a handle (0430 3545) or a telescope (0430 0941) for this probe.
The vane/temperature probe (in conjunction with the appropriate measuring instrument) is ideal for determining flow velocity and volume flow in ventilation ducts. It can also measure temperatures of up to +140 °C at the same time. Please note you will need either a handle (0430 3545) or a telescope (0430 0941) for this probe.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Humidity & Temperature category for similar products.
Or let's do a search and help you find what you need:

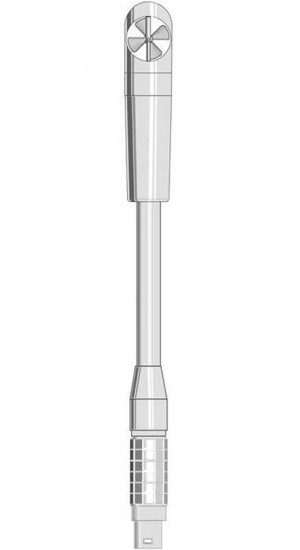

Use the 16 mm vane/temperature probe to determine flow velocity and volume flow in ventilation ducts (e.g. during the maintenance or commissioning of ventilation systems). It is particularly suitable for medium flow velocities up to +60 m/s and delivers optimum results. The vane anemometer can also measure temperatures up to +140 °C at the same time.
Features
| Temperature - TC Type K (NiCr-Ni) | |
| Measuring range | -30 to +140 °C |
| Accuracy | Class 1 |
| Velocity / Volume flow | |
| Measuring range | +0.6 to +60 m/s |
| Accuracy | ±(0.2 m/s + 1 % of mv) (+0.6 to +40 m/s) / ±(0.2 m/s + 2 % of mv) (+40.1 to +50 m/s) |
| General | |
| Length | 180 mm |
| Diameter | 16mm |
| Temperature - TC Type K (NiCr-Ni) | |
| Measuring range | -30 to +140 °C |
| Accuracy | Class 1 |
| Velocity / Volume flow | |
| Measuring range | +0.6 to +60 m/s |
| Accuracy | ±(0.2 m/s + 1 % of mv) (+0.6 to +40 m/s) / ±(0.2 m/s + 2 % of mv) (+40.1 to +50 m/s) |
| General | |
| Length | 180 mm |
| Diameter | 16mm |
