Testo 0635 9430 Vane Probe Head, 4"

Model: 0635 9430

Testo 0635 9430 Vane Probe Head, 4"-


Downloads: manual

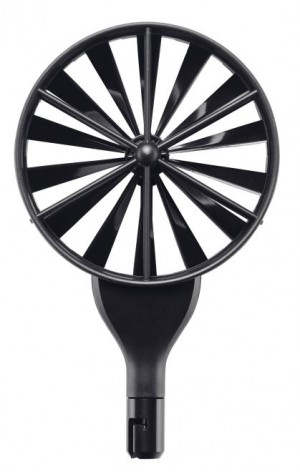

Testo 0635 9430 Vane Probe Head, 4"

Model: 0635 9430

This is a great addition to the 0554 2160 cable handle. Features intuitive technology that provides a parallel determination of air velocity, volume flow and air temperature.

This is a great addition to the 0554 2160 cable handle. Features intuitive technology that provides a parallel determination of air velocity, volume flow and air temperature.

Sale Price $362.10 USD
Regular Price $426.00 USD
Availability 2 to 3 Weeks
Quantity

Testo 0635 9430 Offers

Features

  • Convenience: probe head is easy to attach to the universal Bluetooth or cable handle or to the extendable telescope (all available to order separately) using the adapter
  • Precise: get the right results in next to no time, even in turbulent air flow - using the optionally available funnel set and volume flow straightener
  • Intelligent calibration concept: only send in the probe head for calibration
  • More applications, less equipment: if you already own one of our probes with a universal handle, you can easily expand your portfolio of probes with the 4" (100 mm) vane probe head
  • Intuitive: parallel determination of air velocity, volume flow and air temperature

Applications

  • Ventilation

Testo 0635 9430 Specifications

Temperature - NTC
Measuring Range -4 to 158°F (-20 to 70°C)
Accuracy ±0.9°F (±0.5°C)
Resolution 0.1°F (0.1°C)
Velocity/Volume Flow
Measuring Range 59.1 to 6890 fpm (0.3 to 35 m/s)
Accuracy ±(19.7 fpm + 1.5 % of mv) (59.1 to 3937 fpm)
±(39.4 fpm t1 1.5 % of mv) (3938.98 t2 6890 fpm)
±(0.1 m/s + 1.5 % of mv)(0.3 to 20 m/s)
±(0.2 m/s t1 1.5 % of mv) (20.01 t2 35 m/s)
Resolution 1.97 fpm (0.01 m/s)
General Specifications
Operating Temperature -4 to 158°F (-20 to 70°C)
Storage Temperature -4 to 158°F (-20 to 70°C)
Diameter 4" (100 mm)
Dimensions 7.1 x 4.1 x 1.8" (180 x 105 x 46 mm)
Weight 4.4 oz (125 g)

What's included with the Testo 0635 9430

  • Testo 0635 9430 Vane Probe Head, 4"
  • The Testo probe system for maximum measurement convenience | Be sure. Testo
