The Testo 0635 6045 Type K vane probe measures airflow from 120 to 4,000 FPM (feet per minute) and temperature from -40 to +350 degrees C (-40 to +660 degrees F). This probe is for use with the Testo 445 VAC measuring instrument.
The Testo 0635 6045 Type K vane probe measures airflow from 120 to 4,000 FPM (feet per minute) and temperature from -40 to +350 degrees C (-40 to +660 degrees F). This probe is for use with the Testo 445 VAC measuring instrument.

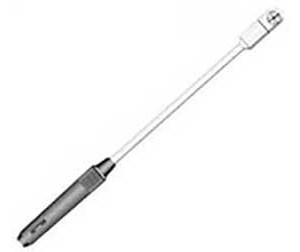

The Testo 0635 6045 Type K vane probe measures airflow from 120 to 4,000 FPM (feet per minute) with an accuracy of + or - 3% FPM + or - 1% of the reading. It measures temperature from -40 to +350 degrees C (-40 to +660 degrees F). The probe with handle measures 560mm (22") and has a 25mm (1") diameter tip. This probe is for use with the Testo 445 VAC measuring instrument (sold separately).
Features
Applications
Use the 25 mm vane probe to determine flow velocity and volume flow in ventilation ducts.
| Temperature - TC Type K (NiCr-Ni) | -40 to +350°C |
| Velocity / Volume flow Measuring range | +0.6 to +20 m/s |
| Accuracy | ±(0.3 m/s + 1.0 % of fsv) |
| Length probe shaft | 560 mm |
| Probe head diameter | 25 mm |
| Temperature - TC Type K (NiCr-Ni) | -40 to +350°C |
| Velocity / Volume flow Measuring range | +0.6 to +20 m/s |
| Accuracy | ±(0.3 m/s + 1.0 % of fsv) |
| Length probe shaft | 560 mm |
| Probe head diameter | 25 mm |
