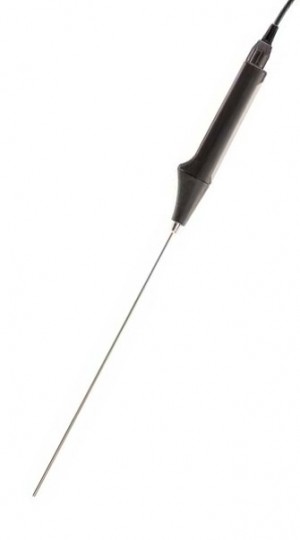

High-accuracy Pt100 immersion and penetration probe supplied with a factory calibration certificate at the 0°C and 156°C test points. Additionally, when paired with a compatible measuring instrument such as the 735, system accuracy reaches 0.05°C at a resolution of 0.001°C, qualifying it for use as a working standard. Optional ISO or DAkkS calibration is available.
High-accuracy Pt100 immersion and penetration probe supplied with a factory calibration certificate at the 0°C and 156°C test points. Additionally, when paired with a compatible measuring instrument such as the 735, system accuracy reaches 0.05°C at a resolution of 0.001°C, qualifying it for use as a working standard. Optional ISO or DAkkS calibration is available.
High-precision temperature measurements pose no problem for this immersion/penetration probe with Pt100 sensor. Combined with a suitable Testo temperature measuring instrument, such as the testo 735, its system accuracy is so high that the measurement system can also be used as a working standard.
Features
Applications
| Measuring range | -80 to +300°C |
| Accuracy | ±0.3°C (-80 to -40°C) ; ±(0.1°C + 0.05 % of mv) (-40 to 0°C); ±0.05°C (0 to +100°C) ; ±(0.05°C + 0.05 % of mv) (+100 to +300°C) |
| Reaction time | 60 s |
| Length probe shaft | 295 mm |
| Diameter probe shaft | 4 mm |
| Measuring range | -80 to +300°C |
| Accuracy | ±0.3°C (-80 to -40°C) ; ±(0.1°C + 0.05 % of mv) (-40 to 0°C); ±0.05°C (0 to +100°C) ; ±(0.05°C + 0.05 % of mv) (+100 to +300°C) |
| Reaction time | 60 s |
| Length probe shaft | 295 mm |
| Diameter probe shaft | 4 mm |
