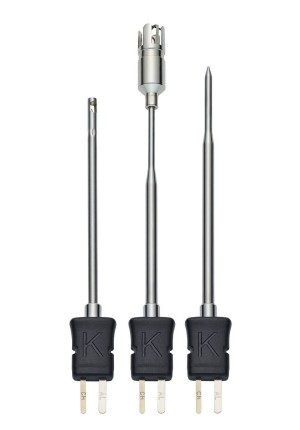

Rugged and versatile, this kit is ideal for several temperature applications and comes complete with an air probe, an immersion probe, and a surface probe. With wide measuring ranges, the temperature probes provide fast results and are compatible with all standard Type K thermocouple connections.
Rugged and versatile, this kit is ideal for several temperature applications and comes complete with an air probe, an immersion probe, and a surface probe. With wide measuring ranges, the temperature probes provide fast results and are compatible with all standard Type K thermocouple connections.
Measure ambient, as well as temperatures in ducts and at air outlets with the air temperature probe. The immersion/penetration probe will provide temperature measurements for liquids, pastes, and semi-solid media. Complete with a sprung thermocouple strip, the surface probe offers temperature measurements of flat and non-planar surfaces.
Features
Applications
| Temperature Probe | |
| Type | K TC |
| Measuring Range | Air probe:8 to 752°F (-50 to +400°C) Immersion/penetration probe: 8 to 752°F (-50 to +400°C) Surface probe: -58 to 662°F (-50 to +350°C) |
| Accuracy | Class 1 |
| Resolution | 0.1°F (0.1°C) |
| Reaction Time | Immersion/penetration probe: t90 = 3.0 sec Surface probe: t90 = 3.0 sec Air probe: t90 = 60 sec |
| General Technical Data | |
| Protection Class | Air probe: IP20 Surface probe: IP20 Immersion/penetration probe: IP40 |
| Probe Tip Diameter | Immersion/penetration probe: 0.12" (3 mm) Surface probe: 0.47" (12 mm) |
| Probe Shaft Dimater | Air probe: 0.16" (4 mm) Immersion/penetration probe: 0.2" (5 mm) Surface probe: 0.2" (5 mm) |
| Probe Length | Air probe: 3.9" (99 mm) Immersion/penetration probe: 4.53" (115 mm) Surface probe: 5.35" (136 mm) |
