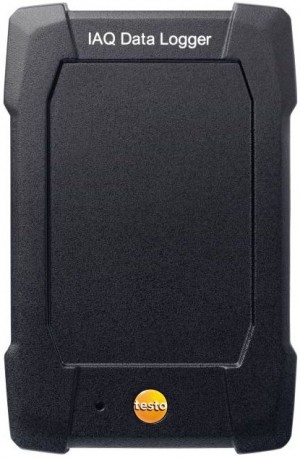

Testo 0577 0400 IAQ Data Logger for long-term measurements

Model: 0577 0400 | UPC: 4029547021763

Testo 0577 0400 IAQ Data Logger for long-term measurements-


Downloads: datasheet

Testo 0577 0400 IAQ Data Logger for long-term measurements

Model: 0577 0400

Monitor and carry out long-term indoor air quality measurements with this IAQ data logger. Additionally, this unit is compatible with probes for measuring the comfort level, turbulence, radiant heat, CO2, CO, illuminance, airflow velocity, humidity, and temperature.

Monitor and carry out long-term indoor air quality measurements with this IAQ data logger. Additionally, this unit is compatible with probes for measuring the comfort level, turbulence, radiant heat, CO2, CO, illuminance, airflow velocity, humidity, and temperature.

Sale Price $977.50 USD
Regular Price $1150.00 USD
Availability 2 to 3 Weeks
Quantity

Testo 0577 0400 Offers

Carry out long-term measurements of indoor air quality with this IAQ data logger. Once the user is done taking the IAQ measurement, they can read out, analyze, and document all the saved values with the 400. Use the compatible probes (sold separately) to measure the comfort level, turbulence, radiant heat, CO2, CO, illuminance, air flow velocity, humidity and temperature. The IAQ data logger offers connection options for up to six fixed cable probes at the same time.

Features

  • Data logger configurable via 400 universal IAQ instrument
  • Compatible with probes for measuring the comfort level, turbulence, radiant heat, CO2, CO, illuminance, air flow velocity, humidity and temperature
  • Stand-alone data logger for long-term measurements up to 2 weeks
  • Connect up to six fixed cable probes at the same time

Particularly useful: Since the data logger acts independently of the measuring instrument during the measurement, you can use the IAQ measuring instrument to carry out measurements elsewhere in the meantime.

Applications

  • PMV/PPD measurement in accordance with EN ISO 7730/ASHRAE 55
  • Local discomfort level measurement in accordance with EN ISO 7730/ASHRAE 55
  • NET measurement in accordance with DIN 33403

Testo 0577 0400 Specifications

Temperature - NTC
Measuring Range -40 to 65.5°F (-40 to 150°C)
Accuracy ±0.2°C ±1 Digit (-25 to 74.9°C)
±0.4°C ±1 Digit (-40 to -25.1°C)
±0.4°C ±1 Digit (75 to 99.9°C)
Resolution 0.1°C
Temperature - TC Type K (NiCr-Ni)
Measuring Range -128.9 to 743.3°F (-200 to 1370°C)
Accuracy ±(0.3°C + 0.1 % of mv) ±1 Digit
Resolution 0.1°C
General Specifications
Memory 360,000 measuring values; 1.5 MB
Interface USB
Power Supply External power supply via mains unit
Cable Length 3.28' (1 m)
Connectable Probes 4 x digital probe with fixed cable or NTC temperature probe with fixed cable (via Testo Universal Connector - TUC)
2 x temperature probe TC type K with fixed cable
Protection Class IP20
Product/Housing Material Plastic
Operating Temperature 23 to 113°F (-5 to 45°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Dimensions 5.3 x 3.5 x 1.5" (136 x 89 x 39 mm)
Weight 0.36 lb (162 g)
Click here for complete specifications on the Testo 0577 0400

What's included with the Testo 0577 0400

  • Testo 0577 0400 IAQ Data Logger for long-term measurements
  • Customer Reviews for the Testo 0577 0400

    Ask a question about Testo 0577 0400 IAQ Data Logger for long-term measurements

    Testo 0577 0400 Offers

    Carry out long-term measurements of indoor air quality with this IAQ data logger. Once the user is done taking the IAQ measurement, they can read out, analyze, and document all the saved values with the 400. Use the compatible probes (sold separately) to measure the comfort level, turbulence, radiant heat, CO2, CO, illuminance, air flow velocity, humidity and temperature. The IAQ data logger offers connection options for up to six fixed cable probes at the same time.

    Features

    • Data logger configurable via 400 universal IAQ instrument
    • Compatible with probes for measuring the comfort level, turbulence, radiant heat, CO2, CO, illuminance, air flow velocity, humidity and temperature
    • Stand-alone data logger for long-term measurements up to 2 weeks
    • Connect up to six fixed cable probes at the same time

    Particularly useful: Since the data logger acts independently of the measuring instrument during the measurement, you can use the IAQ measuring instrument to carry out measurements elsewhere in the meantime.

    Applications

    • PMV/PPD measurement in accordance with EN ISO 7730/ASHRAE 55
    • Local discomfort level measurement in accordance with EN ISO 7730/ASHRAE 55
    • NET measurement in accordance with DIN 33403

    Testo 0577 0400 Specifications

    Temperature - NTC
    Measuring Range -40 to 65.5°F (-40 to 150°C)
    Accuracy ±0.2°C ±1 Digit (-25 to 74.9°C)
    ±0.4°C ±1 Digit (-40 to -25.1°C)
    ±0.4°C ±1 Digit (75 to 99.9°C)
    Resolution 0.1°C
    Temperature - TC Type K (NiCr-Ni)
    Measuring Range -128.9 to 743.3°F (-200 to 1370°C)
    Accuracy ±(0.3°C + 0.1 % of mv) ±1 Digit
    Resolution 0.1°C
    General Specifications
    Memory 360,000 measuring values; 1.5 MB
    Interface USB
    Power Supply External power supply via mains unit
    Cable Length 3.28' (1 m)
    Connectable Probes 4 x digital probe with fixed cable or NTC temperature probe with fixed cable (via Testo Universal Connector - TUC)
    2 x temperature probe TC type K with fixed cable
    Protection Class IP20
    Product/Housing Material Plastic
    Operating Temperature 23 to 113°F (-5 to 45°C)
    Storage Temperature -4 to 140°F (-20 to 60°C)
    Dimensions 5.3 x 3.5 x 1.5" (136 x 89 x 39 mm)
    Weight 0.36 lb (162 g)
    Click here for complete specifications on the Testo 0577 0400

    What's included with the Testo 0577 0400

  • Testo 0577 0400 IAQ Data Logger for long-term measurements
