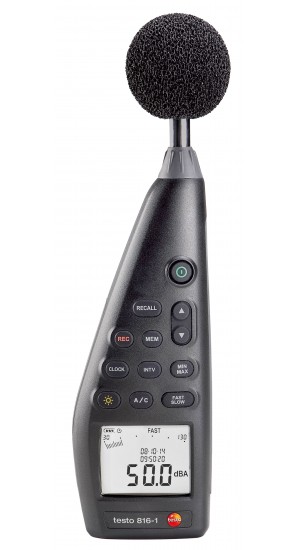

Testo 816-1 Sound Level Meter/Datalogger

Model: 816-1 | Order No: 0563 8170 | UPC: 4029547012747

Testo 816-1 Sound Level Meter/Datalogger-


Downloads: datasheet

Testo 816-1 Sound Level Meter/Datalogger

Model: 816-1 | Order No: 0563 8170

Designed for measuring noise levels in the workplace, public places, industry and production using selective or long-term measurements. Integrated memory for up to 31,000 readings.

Designed for measuring noise levels in the workplace, public places, industry and production using selective or long-term measurements. Integrated memory for up to 31,000 readings.

Sale Price $612.00 USD
Regular Price $720.00 USD
Availability 2 to 3 Weeks
Quantity

Add In-House Traceable Calibration to your 816-1

Add In-House Traceable Calibration to your 816-1


Testo 0563 8170 Offers

Features

  • Complies with all requirements with regard to the execution of non-conform noise level measurements according to IEC 61672-1 Class 2 and ANSI S1.4 Type 2
  • Suitable for carrying out noise level measurements in the workplace, public places, industry and production
  • Change the measuring rate from slow (one measurement/second) to fast (one measurement/125 milliseconds)
  • Select between two frequency measurement types: characteristic curve A which corresponds to the way the human ear perceives sound pressure and characteristic curve C which measures the low frequency percentage of the noise
  • Use optional sound calibrator and screwdriver included to recalibrate your sound level meter on site wherever you are
  • Backlit display for use in all lighting conditions
  • USB cable allows you to hook your meter up to a PC and transfer the data directly and dedicated PC software designed to help you manage and analyze the data you have collected

Testo 0563 8170 Specifications

Measuring Range 30 to 130 dB
Resolution 0.1dB
Accuracy ±1.0 dB
Frequency Range 31.5 Hz to 8 kHz
Time Weighting FAST: 125 ms/SLOW: 1 s
Pressure Dependency -0.002 dB/hPa
Power Supply 1 x 9V alkaline battery
Dimensions/Weight 12 x 3 x 2"/11 oz
Click here for complete specifications on the Testo 816-1

What's included with the Testo 0563 8170

  • 0563 8170 Sound Level Meter/Datalogger
  • Microphone windscreen
  • PC software
  • RS232 cable
  • USB cable
  • Calibration screwdriver
  • Batteries
  • User guide on CD ROM
  • All-in-one carry bag

Customer Reviews for the Testo 816-1

Ask a question about Testo 816-1 Sound Level Meter/Datalogger

Testo 0563 8170 Offers

Features

  • Complies with all requirements with regard to the execution of non-conform noise level measurements according to IEC 61672-1 Class 2 and ANSI S1.4 Type 2
  • Suitable for carrying out noise level measurements in the workplace, public places, industry and production
  • Change the measuring rate from slow (one measurement/second) to fast (one measurement/125 milliseconds)
  • Select between two frequency measurement types: characteristic curve A which corresponds to the way the human ear perceives sound pressure and characteristic curve C which measures the low frequency percentage of the noise
  • Use optional sound calibrator and screwdriver included to recalibrate your sound level meter on site wherever you are
  • Backlit display for use in all lighting conditions
  • USB cable allows you to hook your meter up to a PC and transfer the data directly and dedicated PC software designed to help you manage and analyze the data you have collected

Testo 0563 8170 Specifications

Measuring Range 30 to 130 dB
Resolution 0.1dB
Accuracy ±1.0 dB
Frequency Range 31.5 Hz to 8 kHz
Time Weighting FAST: 125 ms/SLOW: 1 s
Pressure Dependency -0.002 dB/hPa
Power Supply 1 x 9V alkaline battery
Dimensions/Weight 12 x 3 x 2"/11 oz
Click here for complete specifications on the Testo 816-1

What's included with the Testo 0563 8170

  • 0563 8170 Sound Level Meter/Datalogger
  • Microphone windscreen
  • PC software
  • RS232 cable
  • USB cable
  • Calibration screwdriver
  • Batteries
  • User guide on CD ROM
  • All-in-one carry bag

Ask a question about Testo 816-1 Sound Level Meter/Datalogger

Customer Reviews for the Testo 816-1
