Testo 470 Photo/Contact Tachometer, 100,000 RPM

Model: 470 | Order No: 0563 0470 | UPC: 4029547006302

Testo 470 Photo/Contact Tachometer, 100,000 RPM-


Downloads: datasheet manual

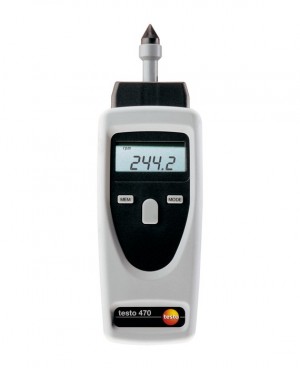

Testo 470 Photo/Contact Tachometer, 100,000 RPM

Model: 470 | Order No: 0563 0470

Contact/noncontact portable tachometer for measuring the speed of motors, conveyor belts, and other moving and rotational systems.

Contact/noncontact portable tachometer for measuring the speed of motors, conveyor belts, and other moving and rotational systems.

Sale Price $322.15 USD
Regular Price $379.00 USD
Availability 2 in Stock
Quantity

Add In-House Traceable Calibration to your 470

Add In-House Traceable Calibration to your 470


Testo 470 Offers

Testo 470, the ideal combination of optical and mechanical rpm measurement. An optical measurement becomes a mechanical measurement by simply attaching an adapter for probe tip or surface speed disc.

Testo 470 Features

  • Easy one-hand operation
  • Measurement of rpm, speeds and lengths
  • Storage of mean/max./min. values, last reading
  • Robust design with SoftCase (protective case)

Testo 470 Technical Data

Storage temperature -4 to +158 °F
Operating temperature +32 to +122 °F
Battery type 2 AA batteries
Battery life 40 hr
Dimensions 6.9 x 2.4 x 1.1 in
RPM (mechanical)
Measuring range +0.1 to +19999 rpm
Accuracy ±0.02% of rdg.
RPM (optical)
Measuring range +1 to +99999 rpm
Resolution 0.01 rpm (+1 to +99.99 rpm)
0.1 rpm (+100 to +999.9 rpm)
1 rpm (+1000 to +99999 rpm)
Click here for complete specifications on the Testo 470

What's Included with the Testo 470

  • Testo 470
  • Adapter
  • Probe Tip
  • Surface Speed disc
  • Reflectors
  • Calibration Protocol
  • Wheels 0.1 m and 6"
  • Soft Case
  • Transport Case
  • Batteries

Customer Reviews for the Testo 470
