Testo 0563 0314 Pressure/Leak Testing System Kit

Model: 0563 0314

Testo 0563 0314 Pressure/Leak Testing System Kit-

Testo 0563 0314 Pressure/Leak Testing System Kit

Model: 0563 0314

This testing system for gas and water pipes is designed to meet the specific needs of gas, water, and heating installation technicians.

This testing system for gas and water pipes is designed to meet the specific needs of gas, water, and heating installation technicians.

This product has been discontinued. To view the closest replacement for this product, click here to go to our affiliate website.

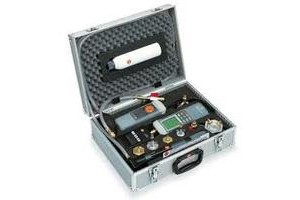

Testo 0563 0314 Complete Pressure Leak Test Set

Features

  • Testo 312 3 pressure gauge up to 300/6000 mbar, with 2 silicone hoses, 2.8 feet long, Ø 1/4 inch
  • Printer to print test results at the touch of a button
  • Testo 316 1 gas leak detector
  • Pressure drop test set, 200 mbar
  • Test pump to produce pressures >500 mbar
  • Single pipe counter cap connects test equipment to pipe
  • Two valve junction to connect 2 or more pipes, can be blocked off separately
  • Single valve stop to block off pipe
  • LW 6 connection hose to connect branch/single pipe counter cap or for extension purposes
  • Conical test plugs ½ inch, ¾ inch
  • High pressure stage plugs 3/8 inch + ¾ inch, ½ inch + 1 inch to connect fittings to gas pipe
  • Leak detection spray to spray on gas pipe
  • Slide rule to quickly determine the usability
  • System case made of aluminum for the complete test system

Description

Testo's Complete testing system for gas and water pipes

This testing system for gas and water pipes is designed to meet the specific needs of gas, water, and heating installation technicians. All of the components in the testing system are made of high quality materials, and all of the kit components are easily attached or swapped.

Use the Testo 312 electronic pressure gauge to check pipes for pressure drop quickly, conveniently, and accurately.

All versions of the Testo 312 are DVGW approved for measurements in accordance with TRGI, and the test report is supplied with the gauges. The gauges can measure absolute and differential pressure. Using a pressure transducer, measurements on liquid substances are also possible. The Testo 312 3 is the universal pressure gauge for the pre test and main test on gas and water pipes with a measuring range up to 6 bar. Pressure changes caused by fluctuations in temperature during the measurement are corrected by temperature compensation from +5 to +45 degrees C. The TopSafe case protects the instrument from dirt and impact, and the readings are printed at the touch of a button.

The alternative to the leak detection spray The Testo 316 1 gas leak detector reliably locates even the smallest leaks and come with optical and audible alarms. The flexible probe enables measurements in hard to reach locations, and is protected from dirt and impact inside the indestructible TopSafe protection cover.

Using the Testo slide rule, you can determine the usability of gas pipes in the matter of seconds. Use the Testo 316 1 gas leak detector to locate even the tiniest leaks in gas pipes.

What's included with the Testo 0563 0314

  • Testo 0563 0314 Pressure/Leak Testing System Kit
  • Click on a category to view a selection of compatible accessories with the Testo 0563 0314 Pressure/Leak Testing System Kit.

    Testo 0554 0549 Universal Infrared Printer 0554 0549
    Includes a Wireless Infrared Interface, 1 Roll of Thermal Paper and 4xAA Batteries.




    Testo 0554 0568 Thermal Printer Paper, 6 Rolls 0554 0568
    For use with the 575 Printer. Measurement data documentation legible for up to 10 years. Package of 6 rolls.




    Testo 0638 1547 Differential Pressure Probe, 1.45 psi (100 hPa) 0638 1547
    Measures differential pressure and velocities (in connection with Pitot tube). Features robust metal housing with impact protection. Includes magnet for fast attachment.




    Testo 0604 0194 Surface Probe, Type K TC 0604 0194
    Quick-action plug-in probe.




    Testo 0604 0493 Immersion Probe,Type K TC 0604 0493
    Super quick-action plug-in probe. For measurements in liquids.




    Testo 0635 2045 Stainless Steel Pitot Tube, 19.5" Long 0635 2045
    500 mm long, for measuring flow velocity.




    Testo 0554 3150 Pressure Set with Chimney Tension Probe 0554 3150
    For use with Pressure Meters. Includes a 1/16" and 1/4" Silicone Hose, T-Adapter, and 1/16" and 1/4" fittings.




    Testo 0554 0448 Silicone Pressure Meter Connection Hose 0554 0448
    2 Meters of Silicone Hose, for use with the 312 Auto-ranging Digital Manometer. Max working pressure is 700hPa/mbar.
