Testo 0563 0002 02 Smart Probes AC & Refrigeration Test Kit with Smartphone Operation

Model: 0563 0002 02

Testo 0563 0002 02 Smart Probes AC & Refrigeration Test Kit with Smartphone Operation-


Downloads: datasheet

Testo 0563 0002 02 Smart Probes AC & Refrigeration Test Kit with Smartphone Operation

Model: 0563 0002 02

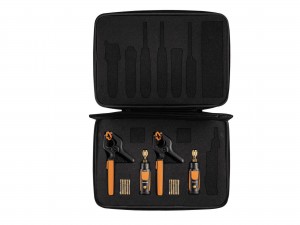

This kit is ideally suited for testing air conditioning and refrigeration systems while using your smartphone or tablet. It includes two high-pressure measuring instruments, as well as two clamp thermometers and a soft case.

This kit is ideally suited for testing air conditioning and refrigeration systems while using your smartphone or tablet. It includes two high-pressure measuring instruments, as well as two clamp thermometers and a soft case.

This product has been discontinued. Click here for the replacement model(s).


Testo 0563 0002 02 Offers

The compact refrigeration set contains the high-pressure measuring instrument 549i as well as the clamp thermometer 115i (two of each). In conjunction with a smartphone or tablet, the refrigeration set is ideally suited to service and error detection on air conditioning and refrigeration systems, as well as their installation. Both measuring instruments can be set up quickly and easily directly at the pressure connection or the temperature measurement location.

They also make working on widely spaced measuring points considerably easier thanks to wireless connection to a Smartphone or Tablet. The measurement values of both instruments are transmitted by Bluetooth connection to the App installed on the end device, and can be conveniently and flexibly read out. In the App, measurement parameters (such as temperature or pressure) can be deleted, added, or their order altered, with just one click. It is also possible to change the displayed measurement parameters quickly. The App also enables evaporation and condensation temperatures to be calculated automatically. All measurement data is displayed either as a chart or in table form. The measurement data log can be emailed directly as a PDF or Excel file. The handy Smart Case enables the measuring instruments to be conveniently transported and means that they are always to hand when they are needed.

Features

  • Bluetooth
  • To be used with your smartphone or tablet
  • Fast and simple installation
  • Low refrigerant loss thanks to hose-less application
  • Automatic calculation of evaporation and condensation temperatures
  • Simple selection from more than 80 refrigerants via testo Smart Probes App
  • Application-specific menus: Target superheating, superheating and sub-cooling
  • All necessary measuring instruments for refrigeration applications in one set
  • Large HVAC/R soft case

Advantages of the Smart Probes AC & Refrigeration Test Kit

The measuring instruments can be connected quickly and easily to your smartphone or tablet via Bluetooth®. This means they enable the App-controlled testing of heat pumps, refrigeration and air conditioning systems. Operation of the measuring instruments is not only state-of-the-art, but also intuitive. Because both the 115i and the 549i can be quickly and easily fitted directly onto the temperature measuring point or pressure connection. They also make it considerably easier to work on measuring points that are a long distance apart, thanks to Bluetooth connection to a smartphone or tablet. Also practical: no hoses are required for measurements, meaning that only very little refrigerant is lost. You can comfortably transport up to 11 Smart Probes in the large HVAC/R soft case, and they are always to hand when you need them.

Practical App with Special Functions and for Measurement Data Analysis on your Smartphone or Tablet

Measurement data is transmitted via Bluetooth from the measuring instrument to the testo Smart Probes App and can be read out conveniently on mobile terminal devices – either as a diagram or in table format. In addition, the App offers practical functions, such as the automatic calculation of superheating and sub-cooling, or the calculation of the cooling or heating output of more than 80 refrigerants. Finally, the measurement data report can be sent directly by e-mail as a pdf or csv file (e.g. with Excel). This saves you time, allowing you to further increase your efficiency.

Applications

  • Air conditioning
  • Refrigeration

Download the App

Testo 0563 0002 02 Specifications

Clamp Thermometer
Measuring Range -40 to 302°F (-40 to 150°C)
Accuracy ±1 Digit ±1.3°C (-20 to 85°C)
Resolution 0.1°C
Dimensions 7.2 x 3.5 x 1.2" (183 x 90 x 30 mm)
High-Pressure Measuring Instrument
Measuring Range -1 to 60 bar
Accuracy ±1 Digit 0.5% of final value
Resolution 0.01 bar
Connection 7/16" – UNF
Overload Rel. 65 bar
Dimensions 4.9 x 1.3 x 1.2" (125 x 32 x 31 mm)
Measurable Media CFC, HFC, HCFC, N, H2O, CO2
General Specifications
Compatibility Requires iOS 8.3 or newer/Android 4.3 or newer
Requires mobile end device with Bluetooth 4.0
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Temperature -4 to 122°F (-20 to 50°C)
Battery Type: 3 x AAA micro batteries
Life: 150 hrs
Click here for complete specifications on the Testo 0563 0002 02

What's included with the Testo 0563 0002 02

  • 2 x 549i High-Pressure Measuring Instrument
  • 2 x 115i Clamp Thermometer
  • Smart Case
  • Calibration Protocol
  • 3 x AAA Batteries
