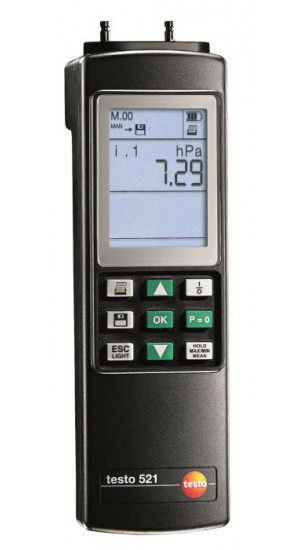

Testo 521-3 0 to 2.5hPa

Model: 521-3 | Order No: 0560 5213 | UPC: 4029547015557

Testo 521-3 0 to 2.5hPa-


Downloads: datasheet manual

Testo 521-3 0 to 2.5hPa

Model: 521-3 | Order No: 0560 5213

Temperature compensated differential pressure sensor in instrument. Additional 2 probe sockets for measuring pressure and temperature.

Temperature compensated differential pressure sensor in instrument. Additional 2 probe sockets for measuring pressure and temperature.

Sale Price $1003.00 USD
Regular Price $1180.00 USD
Availability 2 to 3 Weeks
Quantity

Add In-House Traceable Calibration to your 521-3

Add In-House Traceable Calibration to your 521-3


Testo 521-3 Offers

Using Testo 521-3 even the smallest differential pressures up to 250 Pa are measured. High accuracy and a resolution of 0.1 Pa mean the instrument is ideal for differential pressure measurements in clean rooms.

When used with a Pitot tube, the internal pressure sensor measures flow speeds in the range 0.01 - 3937 fpm.

Features

  • Temp. compensated differential pressure sensor built into instrument
  • Calculation of velocity and volume flow via Pitot tube measurement
  • Multi-point and timed mean calculation
  • 2 probe sockets for pressure and temperature

Testo 521-3 Technical Data

Storage temperature -20 to +70 °C
Operating temperature 0 to +50 °C
Battery type 9 V (6LR61)
Dimensions 8.62 x 2.68 x 1.97 in
Housing material ABS
NTC
Measuring range -40 to +150 °C
Accuracy ±0.2 °C (-10 to +50 °C)
±0.4 °C (remaining range)
Resolution 0.1 °C
Piezoresistive pressure sensor
Measuring range 0 to 100 inH20
Accuracy ±0.2 inH20 (0 to 8 inH20)
±(0.2 inH20 ±0.5% of rdg.) (8.1 to 100 inH20)
Resolution 0.1 inH20
Overload 20 inH2O
Piezoresistive pressure sensor 2
Measuring range 0 to 2000 inH2O
Accuracy ±0.1 % of rdg.
Resolution 0.1 inH20 (0638 1347)
0.001 inH2O (0638 1447)
0.01 inH2O (0638 1547)
0.1 inH2O (0638 1647; 0638 1747; 0638 1847)
Type K
Measuring range -200 to +1370 °C
Accuracy ±0.4 °C (-100 to +200 °C)
±1 °C (remaining range)
Resolution 0.1 °C
Click here for complete specifications on the Testo 521-3

What's Included with the Testo 521-3

  • Testo 521-3
  • Calibration Protocol
  • Batteries

Click on a category to view a selection of compatible accessories with the Testo 521-3 0 to 2.5hPa.

Testo 0554 0549 Universal Infrared Printer 0554 0549
Includes a Wireless Infrared Interface, 1 Roll of Thermal Paper and 4xAA Batteries.




Testo 0554 0568 Thermal Printer Paper, 6 Rolls 0554 0568
For use with the 575 Printer. Measurement data documentation legible for up to 10 years. Package of 6 rolls.




Testo 0638 1547 Differential Pressure Probe, 1.45 psi (100 hPa) 0638 1547
Measures differential pressure and velocities (in connection with Pitot tube). Features robust metal housing with impact protection. Includes magnet for fast attachment.




Testo 0604 0194 Surface Probe, Type K TC 0604 0194
Quick-action plug-in probe.




Testo 0604 0493 Immersion Probe,Type K TC 0604 0493
Super quick-action plug-in probe. For measurements in liquids.




Testo 0635 2045 Stainless Steel Pitot Tube, 19.5" Long 0635 2045
500 mm long, for measuring flow velocity.




Testo 0554 3150 Pressure Set with Chimney Tension Probe 0554 3150
For use with Pressure Meters. Includes a 1/16" and 1/4" Silicone Hose, T-Adapter, and 1/16" and 1/4" fittings.




Testo 0554 0448 Silicone Pressure Meter Connection Hose 0554 0448
2 Meters of Silicone Hose, for use with the 312 Auto-ranging Digital Manometer. Max working pressure is 700hPa/mbar.




Customer Reviews for the Testo 521-3

Ask a question about Testo 521-3 0 to 2.5hPa

Testo 521-3 Offers

Using Testo 521-3 even the smallest differential pressures up to 250 Pa are measured. High accuracy and a resolution of 0.1 Pa mean the instrument is ideal for differential pressure measurements in clean rooms.

When used with a Pitot tube, the internal pressure sensor measures flow speeds in the range 0.01 - 3937 fpm.

Features

  • Temp. compensated differential pressure sensor built into instrument
  • Calculation of velocity and volume flow via Pitot tube measurement
  • Multi-point and timed mean calculation
  • 2 probe sockets for pressure and temperature

Testo 521-3 Technical Data

Storage temperature -20 to +70 °C
Operating temperature 0 to +50 °C
Battery type 9 V (6LR61)
Dimensions 8.62 x 2.68 x 1.97 in
Housing material ABS
NTC
Measuring range -40 to +150 °C
Accuracy ±0.2 °C (-10 to +50 °C)
±0.4 °C (remaining range)
Resolution 0.1 °C
Piezoresistive pressure sensor
Measuring range 0 to 100 inH20
Accuracy ±0.2 inH20 (0 to 8 inH20)
±(0.2 inH20 ±0.5% of rdg.) (8.1 to 100 inH20)
Resolution 0.1 inH20
Overload 20 inH2O
Piezoresistive pressure sensor 2
Measuring range 0 to 2000 inH2O
Accuracy ±0.1 % of rdg.
Resolution 0.1 inH20 (0638 1347)
0.001 inH2O (0638 1447)
0.01 inH2O (0638 1547)
0.1 inH2O (0638 1647; 0638 1747; 0638 1847)
Type K
Measuring range -200 to +1370 °C
Accuracy ±0.4 °C (-100 to +200 °C)
±1 °C (remaining range)
Resolution 0.1 °C
Click here for complete specifications on the Testo 521-3

What's Included with the Testo 521-3

  • Testo 521-3
  • Calibration Protocol
  • Batteries

Click on a category to view a selection of compatible accessories with the Testo 521-3 0 to 2.5hPa.

Testo 0554 0549 Universal Infrared Printer 0554 0549
Includes a Wireless Infrared Interface, 1 Roll of Thermal Paper and 4xAA Batteries.




Testo 0554 0568 Thermal Printer Paper, 6 Rolls 0554 0568
For use with the 575 Printer. Measurement data documentation legible for up to 10 years. Package of 6 rolls.




Testo 0638 1547 Differential Pressure Probe, 1.45 psi (100 hPa) 0638 1547
Measures differential pressure and velocities (in connection with Pitot tube). Features robust metal housing with impact protection. Includes magnet for fast attachment.




Testo 0604 0194 Surface Probe, Type K TC 0604 0194
Quick-action plug-in probe.




Testo 0604 0493 Immersion Probe,Type K TC 0604 0493
Super quick-action plug-in probe. For measurements in liquids.




Testo 0635 2045 Stainless Steel Pitot Tube, 19.5" Long 0635 2045
500 mm long, for measuring flow velocity.




Testo 0554 3150 Pressure Set with Chimney Tension Probe 0554 3150
For use with Pressure Meters. Includes a 1/16" and 1/4" Silicone Hose, T-Adapter, and 1/16" and 1/4" fittings.




Testo 0554 0448 Silicone Pressure Meter Connection Hose 0554 0448
2 Meters of Silicone Hose, for use with the 312 Auto-ranging Digital Manometer. Max working pressure is 700hPa/mbar.
