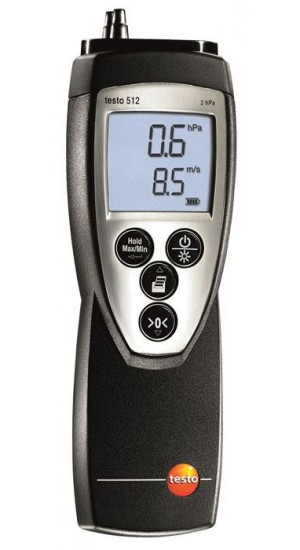

Testo 512 Manometer/Anemometer, 0-20 hPa

Model: 512 | Order No: 0560 5127 | UPC: 4029547004292

Testo 512 Manometer/Anemometer, 0-20 hPa-


Downloads: datasheet manual

Testo 512 Manometer/Anemometer, 0-20 hPa

Model: 512 | Order No: 0560 5127

Displays pressure and flow velocity simultaneously in an easy-to-read, large, backlit display. Measurement data is printed on site with date and time as well as minimum and maximum values.

Displays pressure and flow velocity simultaneously in an easy-to-read, large, backlit display. Measurement data is printed on site with date and time as well as minimum and maximum values.

Sale Price $467.50 USD
Regular Price $550.00 USD
Availability 1 to 2 Weeks
Quantity

Add In-House Traceable Calibration to your 512

Add In-House Traceable Calibration to your 512


Testo 512 Offers

The Testo 512 with a measuring range from 0...0.29 psi can be used for quick ‘n easy filter checks when performing differential pressure checks on ventilation and a/c systems. Differential pressure measurements are carried out to see if filters still work properly or if they need to be replaced. The differential pressure meter is ideal for carrying out pitot static tube measurements in air ducts at very high air flow speeds or when the air stream is strongly polluted. The compact, rugged meter shows both the pressure as well as the air flow speed and has a measuring range from 6 to 180 fps.

Testo 512 Features

  • 8 units for pressure: psi, inch H2O, inch HgkPa, hPa, Pa, mm H2O, mmHg
  • 2 units for flow: fpm, m/s
  • Built-in density compensation

Testo 512 Technical Data

Storage temperature +14 to +160 °F
Operating temperature +32 to +140 °F
Battery type 9V battery
Battery life 120 hr
Dimensions 8 x 2.25 x 1.7 in
Housing material ABS
Pressure sensor integrated
Measuring range 0 to +0.8 inH2O
Accuracy 0.5% of f.v.
Resolution 0.001 inH2O
Click here for complete specifications on the Testo 512

What's Included with the Testo 512

  • Testo 512
  • Calibration Certificate
  • Batteries

Click on a category to view a selection of compatible accessories with the Testo 512 Manometer/Anemometer, 0-20 hPa.

Testo 0516 1201 Hard Carrying Case 0516 1201
Fitted foam padded interior, centered handle, and 2 closing latches. Measures 70 x 85 x 405mm.




Testo 0516 0221 TopSafe Protective Cover 0516 0221
The TopSafe protection case is waterproof, dishwasher-safe, and indestructable. For use with the 110, 416, 417, 425, 512, 625, 720, and 925.




Testo 0554 0549 Universal Infrared Printer 0554 0549
Includes a Wireless Infrared Interface, 1 Roll of Thermal Paper and 4xAA Batteries.




Testo 0554 0568 Thermal Printer Paper, 6 Rolls 0554 0568
For use with the 575 Printer. Measurement data documentation legible for up to 10 years. Package of 6 rolls.




Testo 0635 2045 Stainless Steel Pitot Tube, 19.5" Long 0635 2045
500 mm long, for measuring flow velocity.
