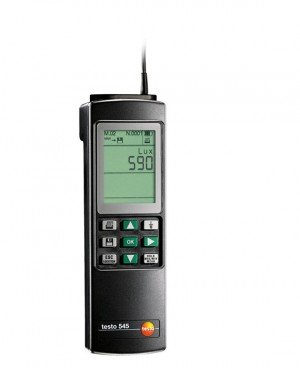

Testo 545 Light Meter/Datalogger, 100,000 LUX

Model: 545 | Order No: 0560 0545 | UPC: 4029547001291

Testo 545 Light Meter/Datalogger, 100,000 LUX-


Downloads: datasheet manual

Testo 545 Light Meter/Datalogger, 100,000 LUX

Model: 545 | Order No: 0560 0545

Allows you to measure light intensity at the workplace quickly and easily. Save up to 3,000 readings for future documentation and analysis.

Allows you to measure light intensity at the workplace quickly and easily. Save up to 3,000 readings for future documentation and analysis.

This product has been discontinued. Click here for the replacement model(s).


Testo 545 Offers

This lux meter is designed for natural and artificial light and comes with a permanently attached light sensor that allows you to measure the light intensity in the workplace, offices, schools and hospitals quickly and reliably. The optional software can be used to compile a light profile from the light intensity readings.

The Testo 545 lux meter can be used for selective and long-term light intensity measurements. It has a built-in data logger which can save up to 3,000 readings and can be used to perform  selective and time-based averaging. The optional Testo turbo printer allows you to print out on site.

The optional PC software allows you to set up up to 99 measuring sites, allocate the readings to the relevant measuring sites and connect individually saved readings to form a curve. The light profile obtained from such data provides you with a picture of the uniformity of the lighting.

Features

  • Precise light intensity readings in lux
  • Large memory for up to 3,000 readings
  • Selective / time-based averaging
  • Measuring site management with optional software: up to 99 measuring sites available

Testo 545 Technical Data

Memory 3000
Data output display LCD, 4 lines
Storage temperature -4 to +160 °F
Operating temperature +32 to +122 °F
Battery type 9 volt battery
Battery life 50 hr
Dimensions 8.7 x 2.7 x 2 in
Housing material ABS
Lux
Measuring range 0 to +100000 Lux
Resolution 1 Lux (0 to +32000 Lux)
10 Lux (0 to +100000 Lux)
Click here for complete specifications on the Testo 545

What's Included with the Testo 545

  • 545 Light Meter with Permanently Attached Light Sensor
  • Calibration Certificate
  • Batteries

Click on a category to view a selection of compatible accessories with the Testo 545 Light Meter/Datalogger, 100,000 LUX.

Testo 0516 0445 Plastic Transport Case for Measuring Instrument, Probes and Accessories 0516 0445
For safe and orderly storage of probes and accessories.
