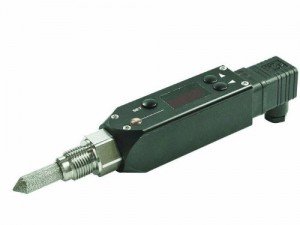

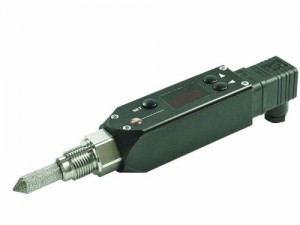

Efficiently measure trace humidity in compressed air or dry air/dry gas. Display and control buttons facilitate easy menu operation. Features a G1/2 thread.
Efficiently measure trace humidity in compressed air or dry air/dry gas. Display and control buttons facilitate easy menu operation. Features a G1/2 thread.
Features
| Dewpoint/Trace Humidity | |
| Units | %RH, °C |
| Calculated Parameters | °Ctd, °Ftd, °CtA, °FtA, ppmv, mg/m3, °F |
| Measuring Range | -49 to 86°Ftd (-45 to 30°Ctd) |
| Measurement Uncertainty | ±1 K at 32°Ftd (0°Ctd) ±3 K at -4°Ftd (-20°Ctd) ±4 K at -40°Ftd (-40°Ctd) |
| Sensor | Polymer humidity sensor with protocolized trace humidity adjustment at -40°Ftd (-40°Ctd) |
| Normed Atmospheric Dewpoint | |
| Measuring Range | -112 to -5°FtdA (-70 to -15°CtdA) (at 30 bar rel./435 psi) -94 to 50°FtdA (-54 to 10°CtdA) (at 3 bar rel./43.5 psi) -76 to 86°FtdA (-45 to 30°CtdA) (at 0 bar rel./0 psi) |
| Temperature | |
| Measurement Range | 32 to 122°F (0 to 50°C) |
| Measurement Uncertainty | ±0.5 K (32 to 122°F/0 to 50°C) |
| Sensor | NTC |
| Dewpoint/Trace Humidity | |
| Units | %RH, °C |
| Calculated Parameters | °Ctd, °Ftd, °CtA, °FtA, ppmv, mg/m3, °F |
| Measuring Range | -49 to 86°Ftd (-45 to 30°Ctd) |
| Measurement Uncertainty | ±1 K at 32°Ftd (0°Ctd) ±3 K at -4°Ftd (-20°Ctd) ±4 K at -40°Ftd (-40°Ctd) |
| Sensor | Polymer humidity sensor with protocolized trace humidity adjustment at -40°Ftd (-40°Ctd) |
| Normed Atmospheric Dewpoint | |
| Measuring Range | -112 to -5°FtdA (-70 to -15°CtdA) (at 30 bar rel./435 psi) -94 to 50°FtdA (-54 to 10°CtdA) (at 3 bar rel./43.5 psi) -76 to 86°FtdA (-45 to 30°CtdA) (at 0 bar rel./0 psi) |
| Temperature | |
| Measurement Range | 32 to 122°F (0 to 50°C) |
| Measurement Uncertainty | ±0.5 K (32 to 122°F/0 to 50°C) |
| Sensor | NTC |
