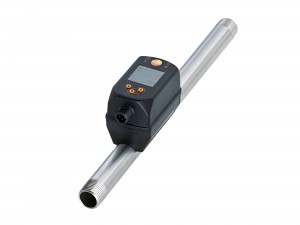

Testo 0555 6443 Compressed Air Flow Transmitter, 1.5" Line

Model: 0555 6443 | UPC: 4029547012303

Testo 0555 6443 Compressed Air Flow Transmitter, 1.5" Line-


Downloads: datasheet

Testo 0555 6443 Compressed Air Flow Transmitter, 1.5" Line

Model: 0555 6443

Probe sensor is positioned inside of the pipe so its exact coordinates are always known and stay constant. For 1.5" diameter pipes.

Probe sensor is positioned inside of the pipe so its exact coordinates are always known and stay constant. For 1.5" diameter pipes.

Sale Price $1252.05 USD
Regular Price $1473.00 USD
Availability 2 to 3 Weeks
Quantity

Testo 0555 6443 Compressed Air Flow Transmitter 1.5 line

Features:

  • Glass-coated ceramic sensor
  • Provides all necessary signal outputs
  • Offers robustness at the same time as fastest reaction times
  • Built-in inflow and outflow pipes allow optimum accuracy
  • Superior design from the sensor to the housing
  • Compact design coupled with integrated high-performance technology
  • Measuring range (1:300): 2,3 to 700 Nm 3 /h
  • Display: 492 Nm 3 /h
  • Measuring stretch: Thread (both sides) / Material:R1 1/2,
  • Stainless steel 1.4401
  • Length measurement pipe: 475 mm (shortened measurement stretches)

For all important diameters: the compressed air counter Testo 6440 In four diameter sizes, the Testo 6440 offers a compact design coupled with integrated high-performance technology, which provides all necessary signal outputs. The built-in inflow and outflow pipes allow optimum accuracy. The thermal, glass-coated ceramic sensor offers robustness at the same time as fastest reaction times.Superior design from the sensor to the housing In contrast to the penetration probes used by competitors, the sensor in the Testo 6440 has a position in the pipe which is exactly known and always the same. With penetration probes, a tilt out of the vertical of 5° already leads to a measurement inaccuracy of 5%. In the Testo 6440, not only are the inflow and outflow pipes integrated, they also have completely even surfaces (i.e. no flange recesses etc.) Many clever details in the design of Testo 6440 ensure that the flow profile remains constant and that an optimum of accuracy can be achieved. Defined interior diameter and volume flow adjustment for highest accuracy Especially in small diameters, the exact knowledge of the interior diameter plays a deciding part in achieving accurate measurements of norm volume flow. Commercially available penetration probes measure the flow velocity and calculate the volume flow by multiplication with the cross-section area. As shown in the illustration, even normed pipes can vary in interior diameter to such a degree that inaccuracies of up to 33% are possible. The Testo 6440 has an exactly known diameter – and is adjusted directly according to norm volume flow, and not flow velocity!

What's included with the Testo 0555 6443

  • Testo 0555 6443 Compressed Air Flow Transmitter, 1.5" Line
  • Customer Reviews for the Testo 0555 6443

    Ask a question about Testo 0555 6443 Compressed Air Flow Transmitter, 1.5" Line

    Testo 0555 6443 Compressed Air Flow Transmitter 1.5 line

    Features:

    • Glass-coated ceramic sensor
    • Provides all necessary signal outputs
    • Offers robustness at the same time as fastest reaction times
    • Built-in inflow and outflow pipes allow optimum accuracy
    • Superior design from the sensor to the housing
    • Compact design coupled with integrated high-performance technology
    • Measuring range (1:300): 2,3 to 700 Nm 3 /h
    • Display: 492 Nm 3 /h
    • Measuring stretch: Thread (both sides) / Material:R1 1/2,
    • Stainless steel 1.4401
    • Length measurement pipe: 475 mm (shortened measurement stretches)

    For all important diameters: the compressed air counter Testo 6440 In four diameter sizes, the Testo 6440 offers a compact design coupled with integrated high-performance technology, which provides all necessary signal outputs. The built-in inflow and outflow pipes allow optimum accuracy. The thermal, glass-coated ceramic sensor offers robustness at the same time as fastest reaction times.Superior design from the sensor to the housing In contrast to the penetration probes used by competitors, the sensor in the Testo 6440 has a position in the pipe which is exactly known and always the same. With penetration probes, a tilt out of the vertical of 5° already leads to a measurement inaccuracy of 5%. In the Testo 6440, not only are the inflow and outflow pipes integrated, they also have completely even surfaces (i.e. no flange recesses etc.) Many clever details in the design of Testo 6440 ensure that the flow profile remains constant and that an optimum of accuracy can be achieved. Defined interior diameter and volume flow adjustment for highest accuracy Especially in small diameters, the exact knowledge of the interior diameter plays a deciding part in achieving accurate measurements of norm volume flow. Commercially available penetration probes measure the flow velocity and calculate the volume flow by multiplication with the cross-section area. As shown in the illustration, even normed pipes can vary in interior diameter to such a degree that inaccuracies of up to 33% are possible. The Testo 6440 has an exactly known diameter – and is adjusted directly according to norm volume flow, and not flow velocity!

    What's included with the Testo 0555 6443

  • Testo 0555 6443 Compressed Air Flow Transmitter, 1.5" Line
